Aztech Innovations Precision Adjustable T-Piece

Product Overview

The Aztech Innovations Adjustable T-Piece is a high-precision component engineered for enthusiasts and technicians seeking absolute control over their build's feeding and air seal. Designed for micrometre-level tuning, this T-piece allows for ultra-fine adjustments to the feed tube position, ensuring optimal alignment and compression across a wide variety of gearbox and receiver combinations.

Key Features & Precision Engineering

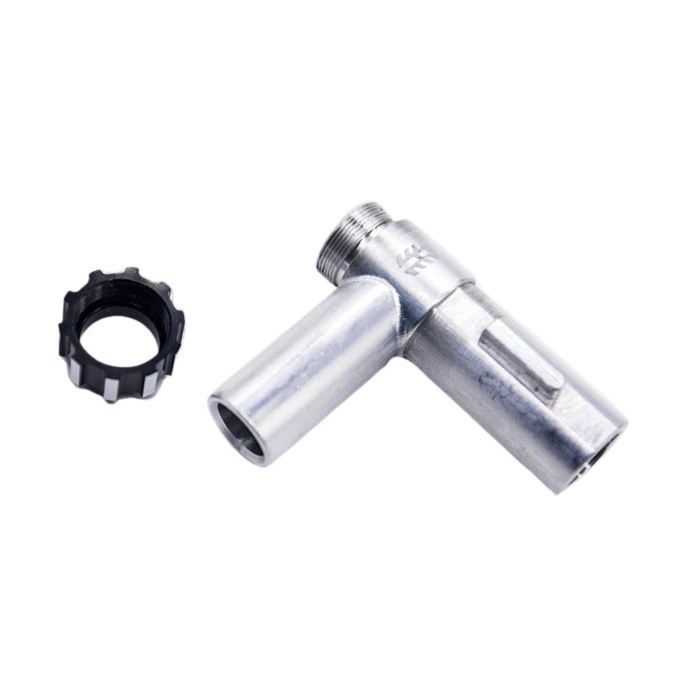

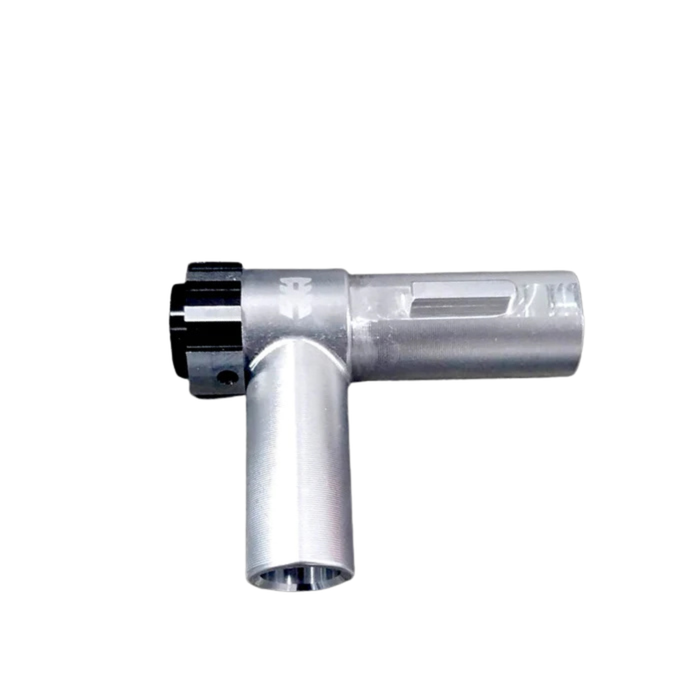

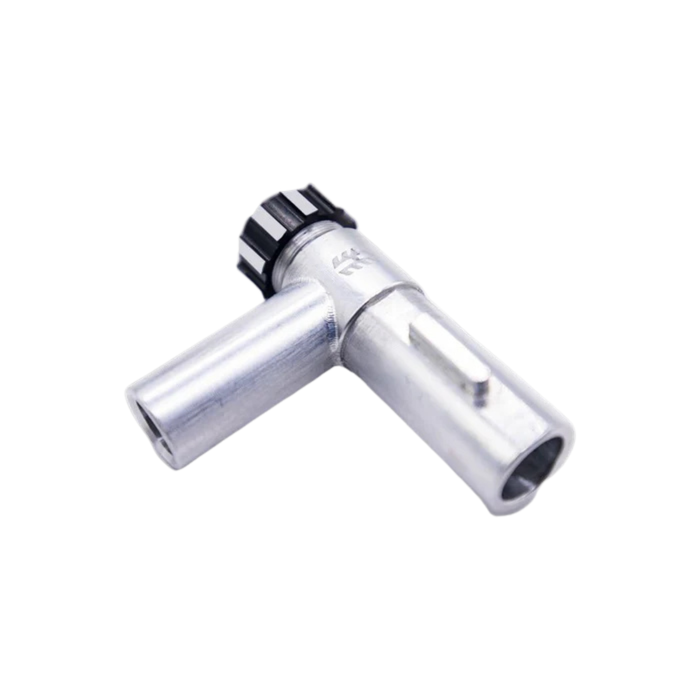

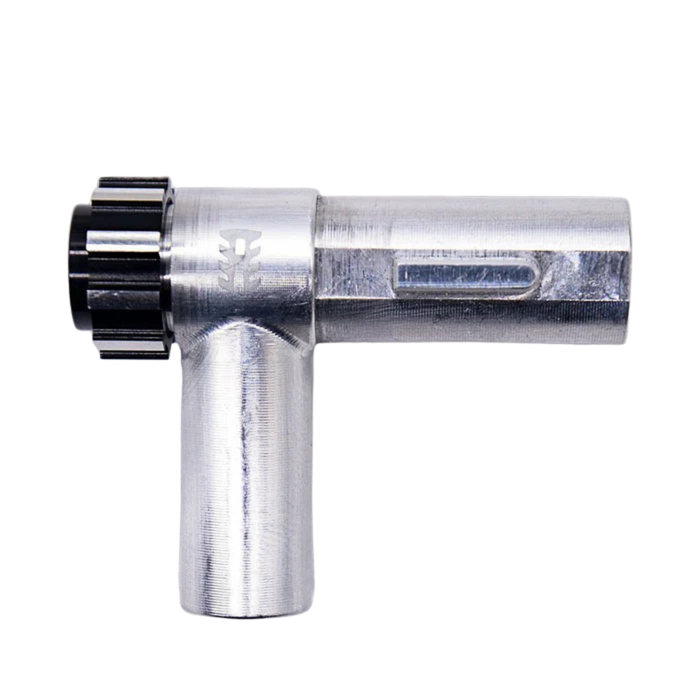

• Micrometer Adjustment: Features an integrated black adjuster ring that allows for longitudinal length tuning in increments of thousandths of a millimeter.

• Billet Construction: CNC machined from high-grade 6061 billet aluminum for superior durability and thermal stability.

• Secure Locking Mechanism: Equipped with a dedicated grub screw and lockable collar to maintain the chosen setting under high-vibration conditions.

• Optimized for Performance Systems: Specifically designed for tuning the Aztech APACHE tappetless system, HPA nozzles, and specialized gearbox conversions.

Technical Specifications

• Material: 6061 Billet CNC Aluminum

• Adjustment Range: Fine-thread adjustment for high-resolution positioning.

• Internal Compatibility: Designed to seat Aztech rubber tips as well as industry-standard tips from Kublai and War Interest.

• External Compatibility:

  • Direct Fit: APS receivers utilising APS or Scythe gearboxes.

  • Universal/Modular: Compatible with most receiver types, though side locator wings may require minor modification (e.g., Dremel work) for ARP and Wells-style receivers/outer barrel adapters.

Installation & Calibration Notes

1. Alignment: Extending the T-piece moves the feed tube further from the gearbox face to achieve a perfect seal or to clear internal obstructions.

2. Securing the Setting: Once the optimal position is verified through testing, tighten the locking grub screw.

3. Retention: To prevent self-adjustment during operation, we recommend applying a low-strength (purple) thread locker or approximately four layers of PTFE thread tape to the adjustable face.

4. Universal Fitment Disclaimer: As a universal performance part, while successful in most applications, fitment cannot be guaranteed for all non-standard receiver and barrel combinations without minor technical adjustment.
